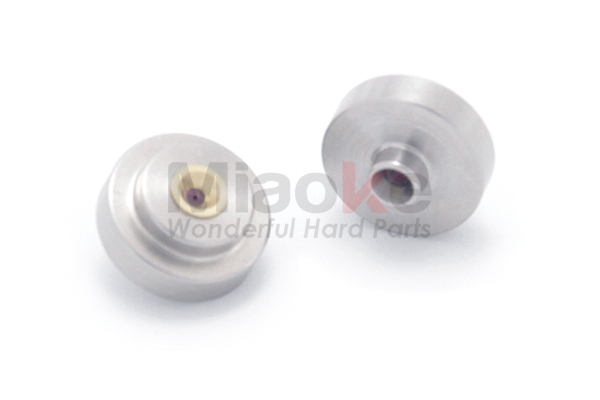

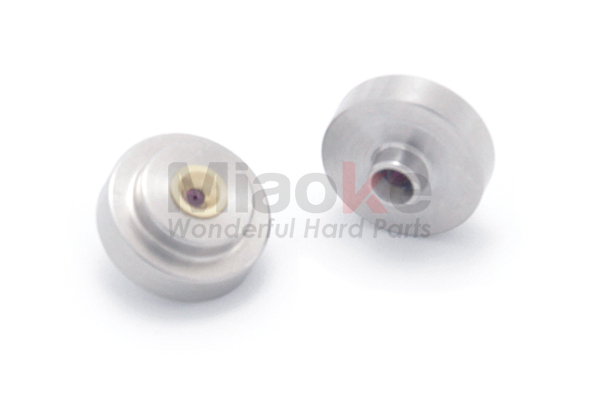

Paser 2, Step Ruby Orifice Assy; High Quality

Miaoke SKU: BSF05R-H033_Group
Description:

High quality; Replace Flow Paser 2 Instajet Ruby Orifice Assy; It's also compatable to H2O and KMT.

Replaces P/N: 001821-13_Group
MOQ: 20

SPECIFICATIONS

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSF05R-H010001821-40.004 inch0.10 mmPaser 2
BSF05R-H013001821-50.005 inch0.13 mmPaser 2
BSF05R-H015001821-60.006 inch0.15 mmPaser 2
BSF05R-H018001821-70.007 inch0.18 mmPaser 2
BSF05R-H020001821-80.008 inch0.20 mmPaser 2
BSF05R-H023001821-90.009 inch0.23 mmPaser 2
BSF05R-H025001821-100.010 inch0.25 mmPaser 2
BSF05R-H028001821-110.011 inch0.28 mmPaser 2
BSF05R-H030001821-120.012 inch0.30 mmPaser 2
BSF05R-H033001821-130.013 inch0.33 mmPaser 2
BSF05R-H035001821-140.014 inch0.36 mmPaser 2
BSF05R-H038001821-150.015 inch0.38 mmPaser 2
BSF05R-H041001821-160.016 inch0.41 mmPaser 2
BSF05R-H046001821-180.018 inch0.46 mmPaser 2
BSF05R-H050001821-200.020 inch0.50 mmPaser 2
BSF05R-H070001821-280.028 inch0.70 mmPaser 2

PART NUMBER CROSS REFERENCE

MIAOKE PART NUMBERFLOW OEM PART NUMBERKMT OEM PART NUMBERH2O OEM PART NUMBER
BSF05R-H010001821-420459724203601-04
BSF05R-H013001821-520459727203601-05
BSF05R-H015001821-620459730203601-06
BSF05R-H018001821-720459733203601-07
BSF05R-H020001821-820466750203601-08
BSF05R-H023001821-920466754203601-09
BSF05R-H025001821-1020466770203601-10
BSF05R-H028001821-1120466774203601-11
BSF05R-H030001821-1220466778203601-12
BSF05R-H033001821-1320459736203601-13
BSF05R-H035001821-1420466782203601-14
BSF05R-H038001821-1520466799203601-15
BSF05R-H041001821-1620459739203601-16
BSF05R-H046001821-1820466807203601-18
BSF05R-H050001821-2020466820203601-20
BSF05R-H070001821-28203601-28
