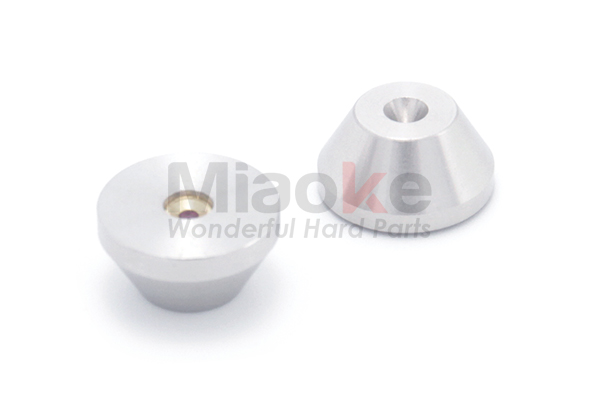

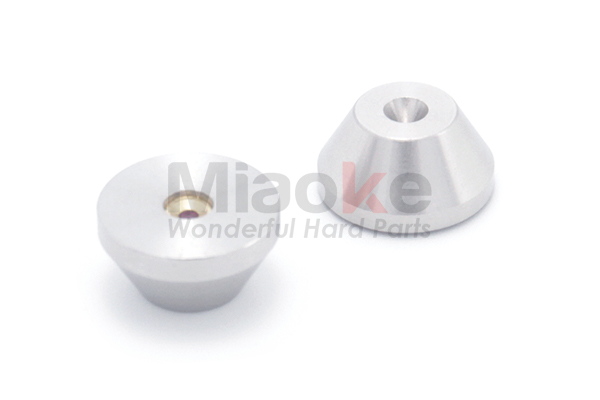

Paser 3, Ruby Orifice; Flat Surface; High Quality

Miaoke SKU: BSF04R-H033_Group
Description:

Flat Surface; High quality; Replace Flow Paser 3 Ruby Orifice Assy; It's also compatable to H2O and KMT.

Replaces P/N: 009519-13_Group
MOQ: 20

SPECIFICATIONS

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSF04R-H010009519-4;  TL-003002-40.004 inch0.10 mmPaser 3 (Flat Surface)
BSF04R-H013009519-5;  TL-003002-50.005 inch0.13 mmPaser 3 (Flat Surface)
BSF04R-H015009519-6;  TL-003002-60.006 inch0.15 mmPaser 3 (Flat Surface)
BSF04R-H018009519-7;  TL-003002-70.007 inch0.18 mmPaser 3 (Flat Surface)
BSF04R-H020009519-8;  TL-003002-80.008 inch0.20 mmPaser 3 (Flat Surface)
BSF04R-H023009519-9;  TL-003002-90.009 inch0.23 mmPaser 3 (Flat Surface)
BSF04R-H025009519-10;  TL-003002-100.010 inch0.25 mmPaser 3 (Flat Surface)
BSF04R-H028009519-11;  TL-003002-110.011 inch0.28 mmPaser 3 (Flat Surface)
BSF04R-H030009519-12;  TL-003002-120.012 inch0.30 mmPaser 3 (Flat Surface)
BSF04R-H033009519-13;  TL-003002-130.013 inch0.33 mmPaser 3 (Flat Surface)
BSF04R-H035009519-14;  TL-003002-140.014 inch0.36 mmPaser 3 (Flat Surface)
BSF04R-H038009519-15;  TL-003002-150.015 inch0.38 mmPaser 3 (Flat Surface)
BSF04R-H041009519-16;  TL-003002-160.016 inch0.41 mmPaser 3 (Flat Surface)
BSF04R-H046009519-18;  TL-003002-180.018 inch0.46 mmPaser 3 (Flat Surface)
BSF04R-H050009519-20;  TL-003002-200.020 inch0.50 mmPaser 3 (Flat Surface)
BSF04R-H070009519-28;  TL-003002-280.028 inch0.70 mmPaser 3 (Flat Surface)

PART NUMBER CROSS REFERENCE

MIAOKE PART NUMBERFLOW OEM PART NUMBERKMT OEM PART NUMBERH2O OEM PART NUMBER
BSF04R-H010009519-4;  TL-003002-420466257203501-04
BSF04R-H013009519-5;  TL-003002-520466266203501-05
BSF04R-H015009519-6;  TL-003002-620459772203501-06
BSF04R-H018009519-7;  TL-003002-720459775203501-07
BSF04R-H020009519-8;  TL-003002-820459778203501-08
BSF04R-H023009519-9;  TL-003002-920459781203501-09
BSF04R-H025009519-10;  TL-003002-1020459784203501-10
BSF04R-H028009519-11;  TL-003002-1120459787203501-11
BSF04R-H030009519-12;  TL-003002-1220459790203501-12
BSF04R-H033009519-13;  TL-003002-1320459793203501-13
BSF04R-H035009519-14;  TL-003002-1420459796203501-14
BSF04R-H038009519-15;  TL-003002-1520459799203501-15
BSF04R-H041009519-16;  TL-003002-1620459802203501-16
BSF04R-H046009519-18;  TL-003002-1820459808203501-18
BSF04R-H050009519-20;  TL-003002-2020459814203501-20
BSF04R-H070009519-28;  TL-003002-28203501-28
