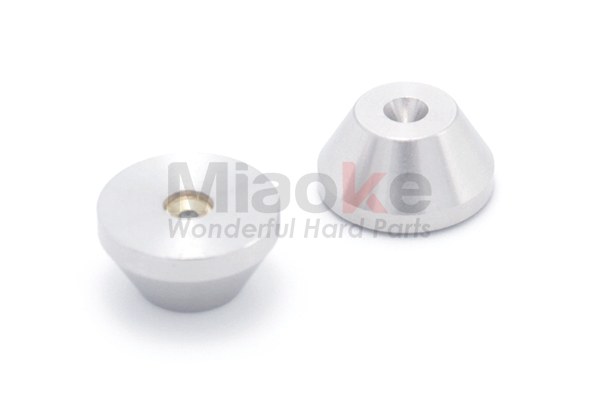

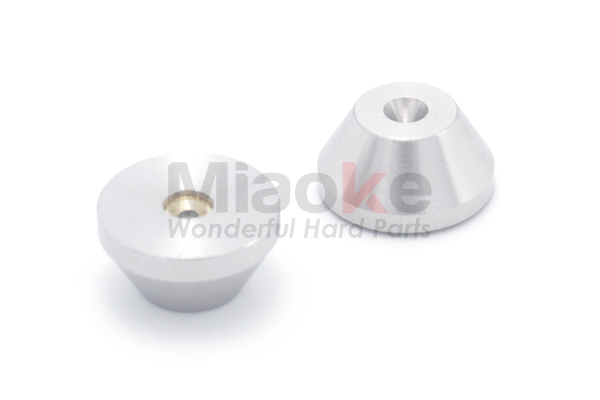

Paser 3, Diamond Orifice; Flat Surface

Miaoke SKU: BSF04D-025_Group
Description:

Flat Surface; Replace Flow Paser 3 Diamond Orifice Assy; It's also compatable to H2O and KMT.

Replaces P/N: 009519-10_Group
MOQ: 2

SPECIFICATIONS

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSF04D-010009519-4;  TL-003002-40.004 inch0.10 mmPaser 3 (Flat Surface)
BSF04D-013009519-5;  TL-003002-50.005 inch0.13 mmPaser 3 (Flat Surface)
BSF04D-015009519-6;  TL-003002-60.006 inch0.15 mmPaser 3 (Flat Surface)
BSF04D-018009519-7;  TL-003002-70.007 inch0.18 mmPaser 3 (Flat Surface)
BSF04D-020009519-8;  TL-003002-80.008 inch0.20 mmPaser 3 (Flat Surface)
BSF04D-023009519-9;  TL-003002-90.009 inch0.23 mmPaser 3 (Flat Surface)
BSF04D-025009519-10;  TL-003002-100.010 inch0.25 mmPaser 3 (Flat Surface)
BSF04D-028009519-11;  TL-003002-110.011 inch0.28 mmPaser 3 (Flat Surface)
BSF04D-030009519-12;  TL-003002-120.012 inch0.30 mmPaser 3 (Flat Surface)
BSF04D-033009519-13;  TL-003002-130.013 inch0.33 mmPaser 3 (Flat Surface)
BSF04D-035009519-14;  TL-003002-140.014 inch0.36 mmPaser 3 (Flat Surface)
BSF04D-038009519-15;  TL-003002-150.015 inch0.38 mmPaser 3 (Flat Surface)
BSF04D-041009519-16;  TL-003002-160.016 inch0.41 mmPaser 3 (Flat Surface)
BSF04D-046009519-18;  TL-003002-180.018 inch0.46 mmPaser 3 (Flat Surface)
BSF04D-050009519-20;  TL-003002-200.020 inch0.50 mmPaser 3 (Flat Surface)
BSF04D-070009519-28;  TL-003002-280.028 inch0.70 mmPaser 3 (Flat Surface)

PART NUMBER CROSS REFERENCE

MIAOKE PART NUMBERFLOW OEM PART NUMBERKMT OEM PART NUMBERH2O OEM PART NUMBER
BSF04D-010009519-4;  TL-003002-420459742201501-04
BSF04D-013009519-5;  TL-003002-520466225201501-05
BSF04D-015009519-6;  TL-003002-620459745201501-06
BSF04D-018009519-7;  TL-003002-720459748201501-07
BSF04D-020009519-8;  TL-003002-820466229201501-08
BSF04D-023009519-9;  TL-003002-920459751201501-09
BSF04D-025009519-10;  TL-003002-1020459754201501-10
BSF04D-028009519-11;  TL-003002-1120459757201501-11
BSF04D-030009519-12;  TL-003002-1220466232201501-12
BSF04D-033009519-13;  TL-003002-1320459760201501-13
BSF04D-035009519-14;  TL-003002-1420459763201501-14
BSF04D-038009519-15;  TL-003002-1520466241201501-15
BSF04D-041009519-16;  TL-003002-1620459766201501-16
BSF04D-046009519-18;  TL-003002-1820466245201501-18
BSF04D-050009519-20;  TL-003002-2020466253201501-20
BSF04D-070009519-28;  TL-003002-28201501-28
