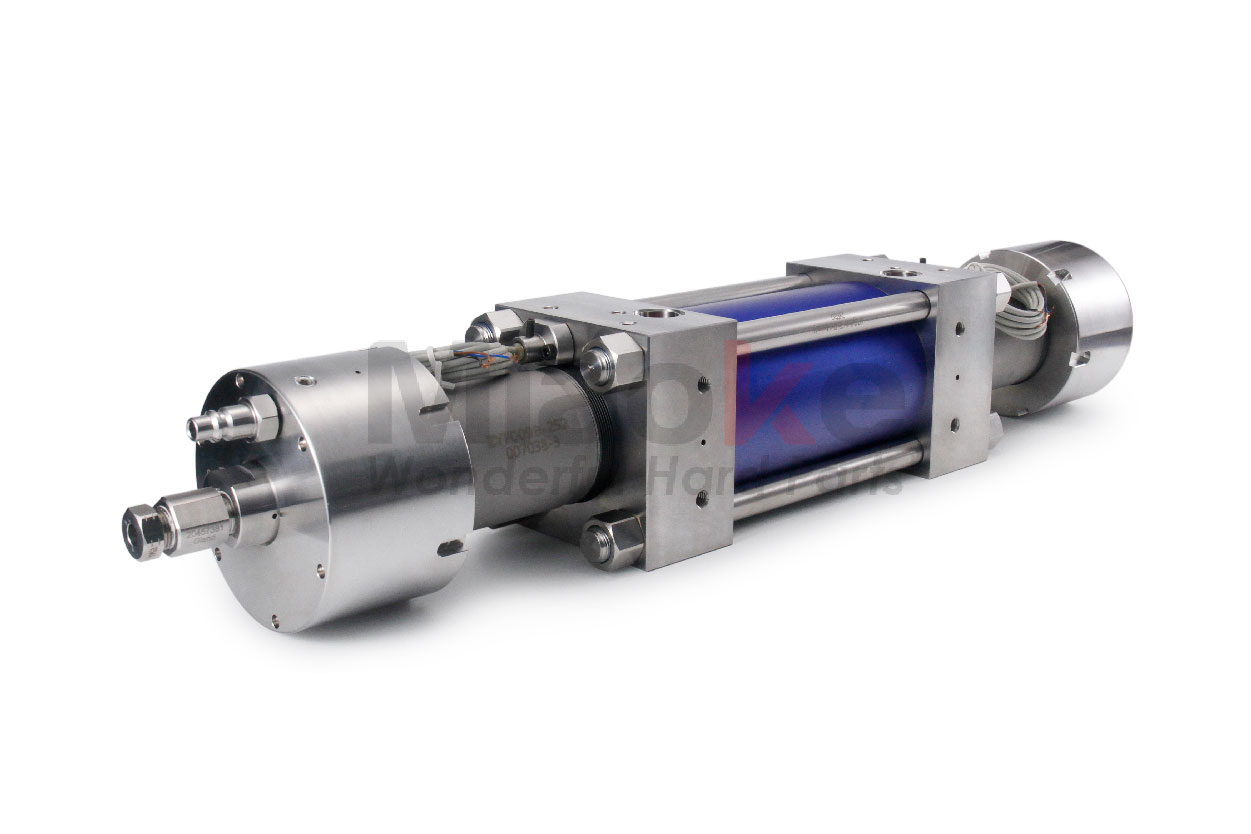

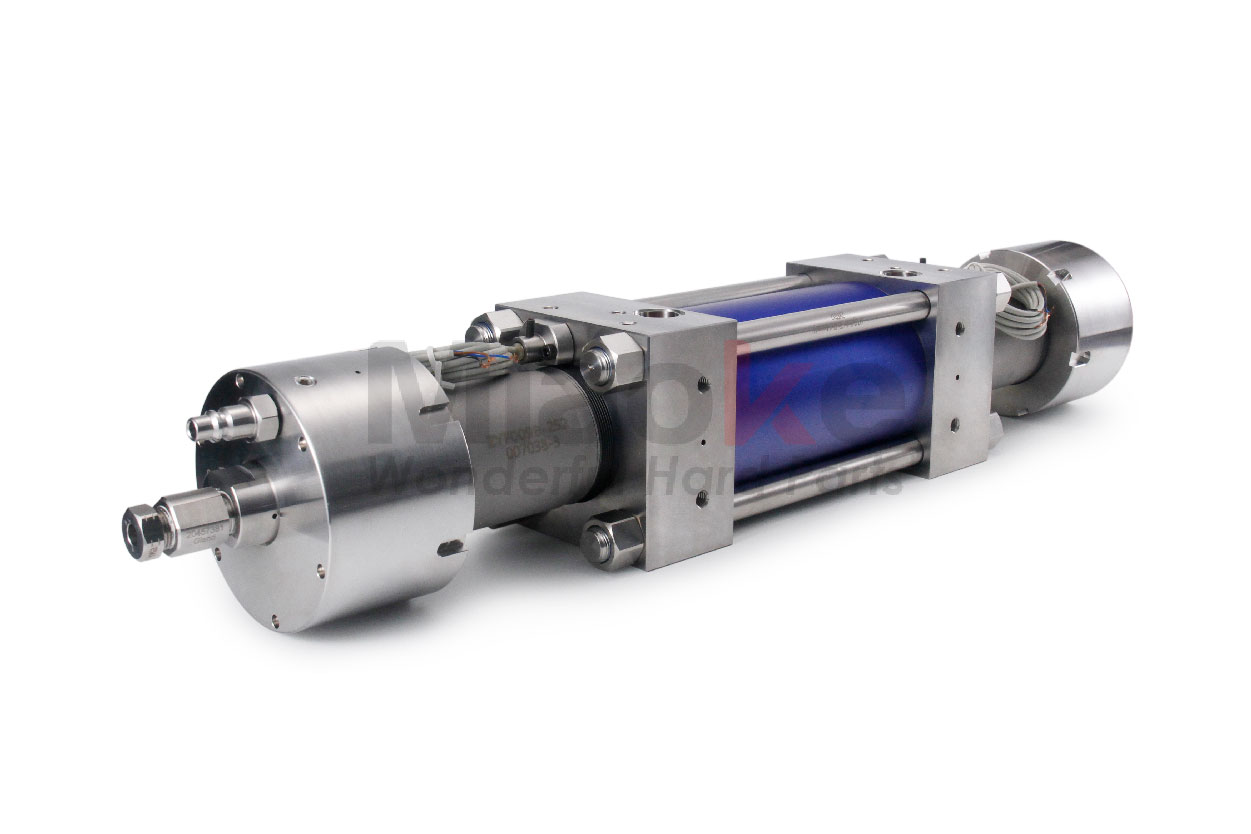

Intensifier Short Block Assembly, H2O Style

Miaoke SKU: ZYF002H
Description:

To Replace H2O Jet Genuine Waterjet Parts Short Block Intensifier Assembly. The Part Number 301003-3-3

Replaces P/N: 301003-3-3
MOQ: 1
QTYPictureWHP#Reference CodeDescription
1ZYF004Z-A301023-1, TL-001013-1
1-12349
Hydraulic Piston Assembly
[ parts details see catalog page 17 ]
2ZYF011010253-1, TL-001005-1,
100013-1, 1-11309
High Pressure Ceramic Plunger
1ZYF007C-1000-1, TL-001012-1,
100008-1, 1-11284
Low Pressure Cylinder,
Chrome Plated
1ZYF008-L007303-2, TL-001008-2,
301001-1-L, 1-11433
End Bell, Left Hand
1ZYF008-R007303-1, TL-001008-1,
301001-1-R, 1-11432
End Bell, Right Hand
2ZYF602A-11275, 1-12340Spring Engerized Rod Seal
2ZYF021Z010276-1, TL-001027-1,
1-11468
Spacer Oil Seal Assembly
2ZYF019B-8346-1, 1-12378Actuator Assy, Electronic Shift
2ZYF020A-2409Spring, Compression, Music Wire
2ZYF022B-1702-1, 1-11470Shifting Pin, Electrical Shift
2ZYF023011275-1, 1-12357Sensor Assy, Electric Shift, 24V
w/ Screw, O-ring-012 & Backup ring-012
2ZYF60ZA-00250-240,
A-0275-240
Back-up Ring Yellow -240
& O-Ring -240
4ZYF012B-1000-2, A-1000,
1-11471
Tie Rod
Including Hex Nut(A-1000)*2
2ZYF009B007038-3, TL-001002-3,
100001-1, 1-11117
High Pressure Cylinder
2ZYF015B-1002-2, TL-001018-1,
1-11365
Back-Up Seal Sleeve
1ZYF800-HB001198-1, TL-001001-1,
1-11135
HP Seal Kit Assy, Prime Blue
2ZYK013Z301002-3Check Valve Assembly, H2O Style
[ parts details see catalog page 20 ]
2ZYF010N321276-1, TL-001010-1,
1-11420
High Pressure End Cap
Quick Disconnect Nipple
2TYC3A-2839, 400006-2,
ACL60
HP Collar, 3/8"
2TYG3A-2838, 400005-2,
AGL60
HP Gland, 3/8"
2OR023BB9A-00633-023O-Ring, Buna-N, 90A, -023
