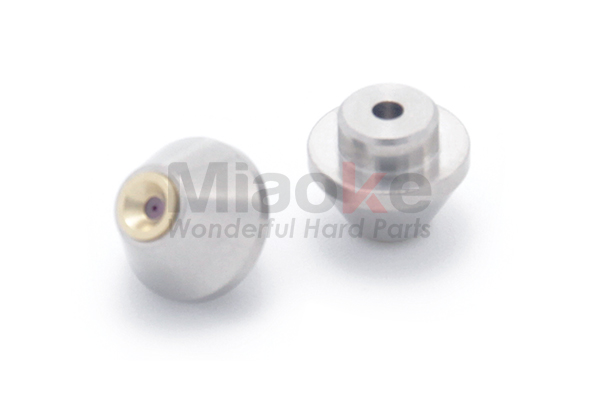

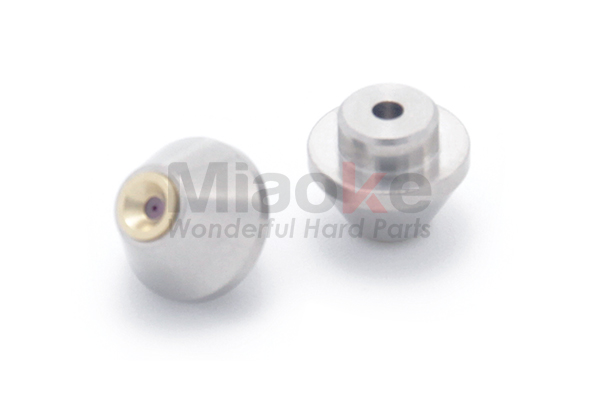

SP5, Orifice Assy; Dardi type; Standard Quality

Miaoke SKU: BSD04R-M025

Description:

To Replace Dardi SP5 Orifice. Ruby, Sapphire and Diamond Available.

Replaces P/N: 731010068

MOQ: 20

BUY IT ONLINE REQUEST A QUOTE

SPECIFICATIONS | Ruby Standard Quality

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD04R-M010		0.004 inch	0.10 mm	SP5
BSD04R-M013		0.005 inch	0.13 mm	SP5
BSD04R-M015		0.006 inch	0.15 mm	SP5
BSD04R-M018		0.007 inch	0.18 mm	SP5
BSD04R-M020		0.008 inch	0.20 mm	SP5
BSD04R-M023		0.009 inch	0.23 mm	SP5
BSD04R-M025	731010068; K0599051	0.010 inch	0.25 mm	SP5
BSD04R-M028		0.011 inch	0.28 mm	SP5
BSD04R-M030	731010070; K0599052	0.012 inch	0.30 mm	SP5
BSD04R-M033		0.013 inch	0.33 mm	SP5
BSD04R-M035		0.014 inch	0.36 mm	SP5
BSD04R-M038		0.015 inch	0.38 mm	SP5
BSD04R-M041		0.016 inch	0.41 mm	SP5
BSD04R-M046		0.018 inch	0.46 mm	SP5
BSD04R-M050		0.020 inch	0.50 mm	SP5

SPECIFICATIONS | Sapphire

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD04S-010		0.004 inch	0.10 mm	SP5
BSD04S-013		0.005 inch	0.13 mm	SP5
BSD04S-015		0.006 inch	0.15 mm	SP5
BSD04S-018		0.007 inch	0.18 mm	SP5
BSD04S-020		0.008 inch	0.20 mm	SP5
BSD04S-023		0.009 inch	0.23 mm	SP5
BSD04S-025	731010068; K0599051	0.010 inch	0.25 mm	SP5
BSD04S-028		0.011 inch	0.28 mm	SP5
BSD04S-030	731010070; K0599052	0.012 inch	0.30 mm	SP5
BSD04S-033		0.013 inch	0.33 mm	SP5
BSD04S-035		0.014 inch	0.36 mm	SP5
BSD04S-038		0.015 inch	0.38 mm	SP5
BSD04S-041		0.016 inch	0.41 mm	SP5
BSD04S-046		0.018 inch	0.46 mm	SP5
BSD04S-050		0.020 inch	0.50 mm	SP5

SPECIFICATIONS | Diamond

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD04D-010		0.004 inch	0.10 mm	SP5
BSD04D-013		0.005 inch	0.13 mm	SP5
BSD04D-015		0.006 inch	0.15 mm	SP5
BSD04D-018		0.007 inch	0.18 mm	SP5
BSD04D-020		0.008 inch	0.20 mm	SP5
BSD04D-023		0.009 inch	0.23 mm	SP5
BSD04D-025	731010068; K0599051	0.010 inch	0.25 mm	SP5
BSD04D-028		0.011 inch	0.28 mm	SP5
BSD04D-030	731010070; K0599052	0.012 inch	0.30 mm	SP5
BSD04D-033		0.013 inch	0.33 mm	SP5
BSD04D-035		0.014 inch	0.36 mm	SP5
BSD04D-038		0.015 inch	0.38 mm	SP5
BSD04D-041		0.016 inch	0.41 mm	SP5
BSD04D-046		0.018 inch	0.46 mm	SP5
BSD04D-050		0.020 inch	0.50 mm	SP5
