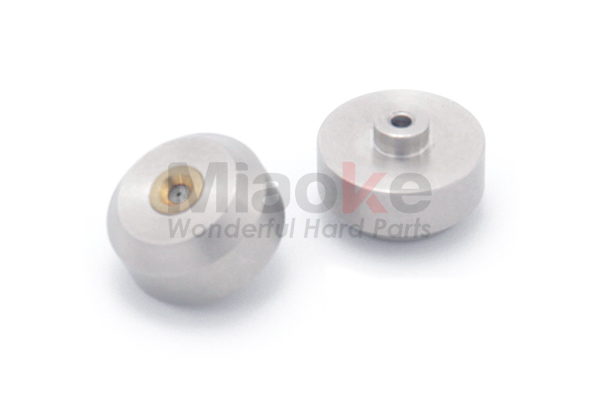

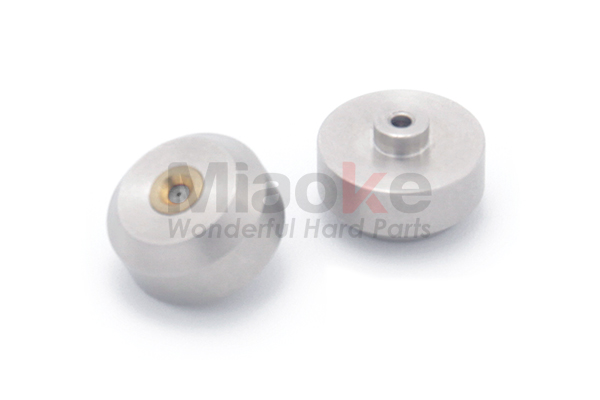

Standard Mount, Diamond Orifice Assy

Miaoke SKU: BSF06D-025_Group
Description:

Replace Flow Standard Mount Diamond Orifice Assy; It's also compatable to H2O and KMT.

Replaces P/N: D-5071-10_Group
MOQ: 2

SPECIFICATIONS

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSF06D-010D-5071-40.004 inch0.10 mmStandard Mount
BSF06D-013D-5071-50.005 inch0.13 mmStandard Mount
BSF06D-015D-5071-60.006 inch0.15 mmStandard Mount
BSF06D-018D-5071-70.007 inch0.18 mmStandard Mount
BSF06D-020D-5071-80.008 inch0.20 mmStandard Mount
BSF06D-023D-5071-90.009 inch0.23 mmStandard Mount
BSF06D-025D-5071-100.010 inch0.25 mmStandard Mount
BSF06D-028D-5071-110.011 inch0.28 mmStandard Mount
BSF06D-030D-5071-120.012 inch0.30 mmStandard Mount
BSF06D-033D-5071-130.013 inch0.33 mmStandard Mount
BSF06D-035D-5071-140.014 inch0.36 mmStandard Mount
BSF06D-038D-5071-150.015 inch0.38 mmStandard Mount
BSF06D-041D-5071-160.016 inch0.41 mmStandard Mount
BSF06D-046D-5071-180.018 inch0.46 mmStandard Mount
BSF06D-050D-5071-200.020 inch0.50 mmStandard Mount
BSF06D-070D-5071-280.028 inch0.70 mmStandard Mount

PART NUMBER CROSS REFERENCE

MIAOKE PART NUMBERFLOW OEM PART NUMBERKMT OEM PART NUMBERH2O OEM PART NUMBER
BSF06D-010D-5071-420459877201101-04
BSF06D-013D-5071-520459880201101-05
BSF06D-015D-5071-620459883201101-06
BSF06D-018D-5071-720459886201101-07
BSF06D-020D-5071-820459889201101-08
BSF06D-023D-5071-920459892201101-09
BSF06D-025D-5071-1020459895201101-10
BSF06D-028D-5071-1120459898201101-11
BSF06D-030D-5071-1220459901201101-12
BSF06D-033D-5071-1320465770201101-13
BSF06D-035D-5071-1420465787201101-14
BSF06D-038D-5071-1520465791201101-15
BSF06D-041D-5071-1620465795201101-16
BSF06D-046D-5071-1820465803201101-18
BSF06D-050D-5071-2020465824201101-20
BSF06D-070D-5071-28201101-28
