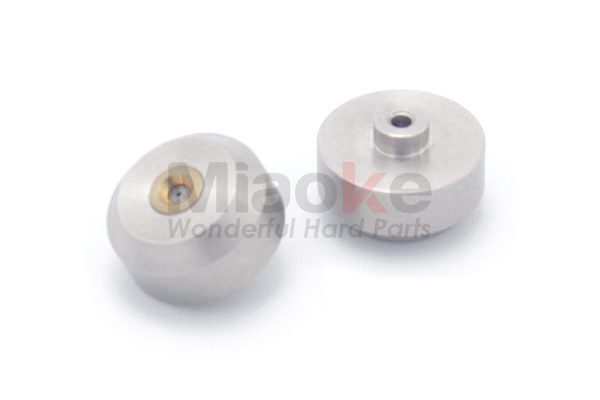

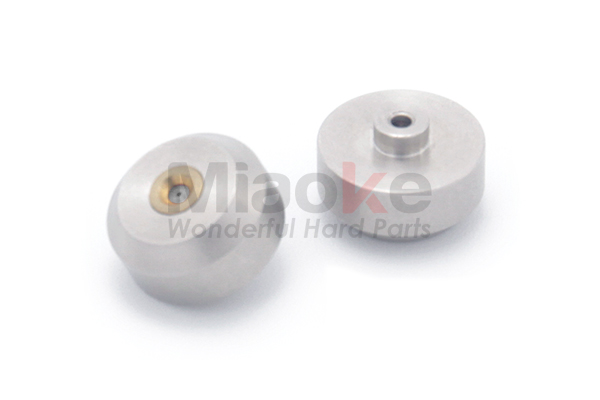

Replace Flow Standard Mount Sapphire Orifice Assy; It's also compatable to H2O and KMT.
| PRODUCT CODE | OEM PART NUMBER | INNER DIAMETER (inch) | INNER DIAMETER (mm) | MODEL NAME |
| BSF06S-010 | 004519-4; TL-003001-4 | 0.004 inch | 0.10 mm | Standard Mount |
| BSF06S-013 | 004519-5; TL-003001-5 | 0.005 inch | 0.13 mm | Standard Mount |
| BSF06S-015 | 004519-6; TL-003001-6 | 0.006 inch | 0.15 mm | Standard Mount |
| BSF06S-018 | 004519-7; TL-003001-7 | 0.007 inch | 0.18 mm | Standard Mount |
| BSF06S-020 | 004519-8; TL-003001-8 | 0.008 inch | 0.20 mm | Standard Mount |
| BSF06S-023 | 004519-9; TL-003001-9 | 0.009 inch | 0.23 mm | Standard Mount |
| BSF06S-025 | 004519-10; TL-003001-10 | 0.010 inch | 0.25 mm | Standard Mount |
| BSF06S-028 | 004519-11; TL-003001-11 | 0.011 inch | 0.28 mm | Standard Mount |
| BSF06S-030 | 004519-12; TL-003001-12 | 0.012 inch | 0.30 mm | Standard Mount |
| BSF06S-033 | 004519-13; TL-003001-13 | 0.013 inch | 0.33 mm | Standard Mount |
| BSF06S-035 | 004519-14; TL-003001-14 | 0.014 inch | 0.36 mm | Standard Mount |
| BSF06S-038 | 004519-15; TL-003001-15 | 0.015 inch | 0.38 mm | Standard Mount |
| BSF06S-041 | 004519-16; TL-003001-16 | 0.016 inch | 0.41 mm | Standard Mount |
| BSF06S-046 | 004519-18; TL-003001-18 | 0.018 inch | 0.46 mm | Standard Mount |
| BSF06S-050 | 004519-20; TL-003001-20 | 0.020 inch | 0.50 mm | Standard Mount |
| BSF06S-070 | 004519-28; TL-003001-28 | 0.028 inch | 0.70 mm | Standard Mount |
| MIAOKE PART NUMBER | FLOW OEM PART NUMBER | KMT OEM PART NUMBER | H2O OEM PART NUMBER |
| BSF06S-010 | 004519-4 | 20459907 | 202101-04 |
| BSF06S-013 | 004519-5 | 20459910 | 202101-05 |
| BSF06S-015 | 004519-6 | 20459913 | 202101-06 |
| BSF06S-018 | 004519-7 | 20459916 | 202101-07 |
| BSF06S-020 | 004519-8 | 20459919 | 202101-08 |
| BSF06S-023 | 004519-9 | 20459922 | 202101-09 |
| BSF06S-025 | 004519-10 | 20459925 | 202101-10 |
| BSF06S-028 | 004519-11 | 20459928 | 202101-11 |
| BSF06S-030 | 004519-12 | 20459931 | 202101-12 |
| BSF06S-033 | 004519-13 | 20459934 | 202101-13 |
| BSF06S-035 | 004519-14 | 20459937 | 202101-14 |
| BSF06S-038 | 004519-15 | 20459940 | 202101-15 |
| BSF06S-041 | 004519-16 | 20459943 | 202101-16 |
| BSF06S-046 | 004519-18 | 20459949 | 202101-18 |
| BSF06S-050 | 004519-20 | 202101-20 | |
| BSF06S-070 | 004519-28 | 202101-28 |
