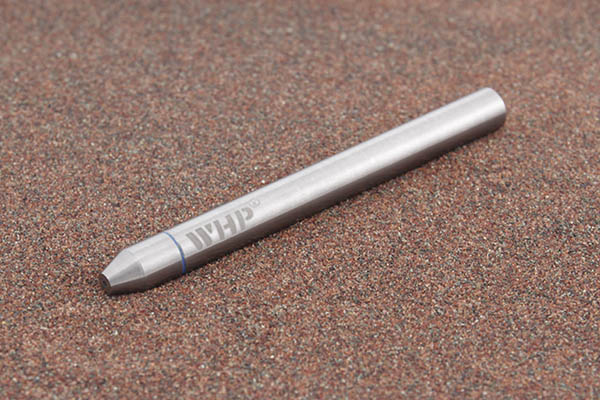

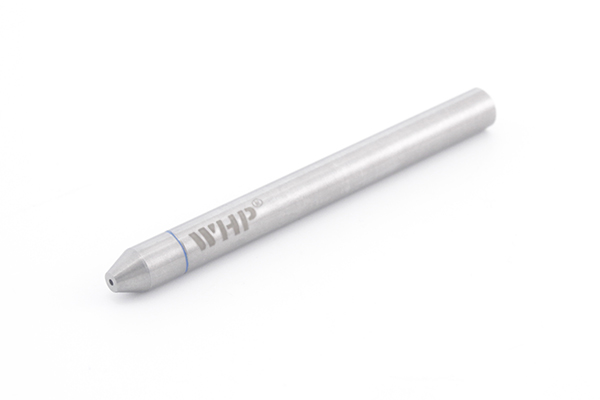

010460-30-30 | WHP R500 Nozzles, .281″×.030″×3″

Miaoke SKU: 714-076-762-R5
Description:

Waterjet nozzles for Flow and Accustream DiaLine Waterjet Cutting Machine. Premium Quality to replace Roctec 500 Part Number: 010460-30-30, 1000004-30-30 and Ceratizit Premium Nozzles.

Replaces P/N: 1000004-30-30
MOQ: 10

SPECIFICATIONS

PRODUCT CODEREFERENCE CODEDESCRIPTION (mm)DESCRIPTION (inch)
714-076-762-R5010460-30-30, 1000004-30-307.14×0.76×76.2.281"×.030"×3"
714-089-762-R5010460-35-30, 1000004-35-307.14×0.89×76.2.281"×.035"×3"
714-102-762-R5010460-40-30, 1000004-40-307.14×1.02×76.2.281"×.040"×3"
714-114-762-R5010460-45-30, 1000004-45-307.14×1.14×76.2.281"×.045"×3"
714-120-762-R5010460-47-30, 1000004-47-307.14×1.20×76.2.281"×.047"×3"
714-127-762-R5010460-50-30, 1000004-50-307.14×1.27×76.2.281"×.050"×3"
Please contact us for sizes which don't be mentioned in the above chart.
