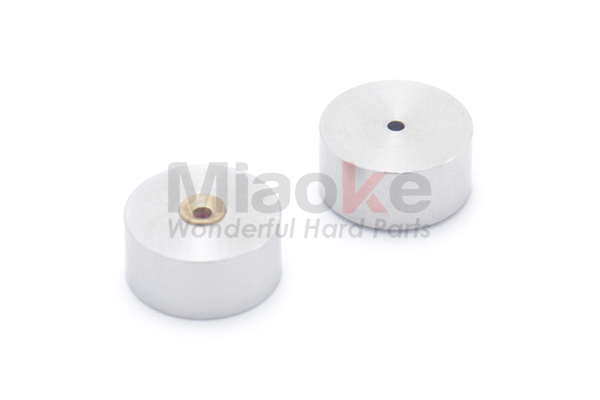

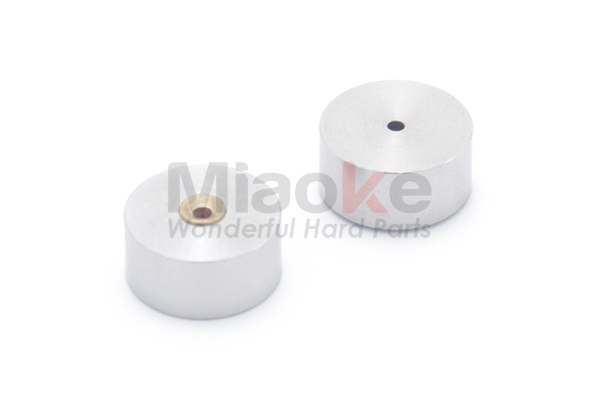

New 4 Axis Orifice Assy; Dardi type; High Quality

Miaoke SKU: BSD02R-H030
Description:

To Replace Dardi New 4 Axis Orifice. Ruby, Sapphire and Diamond Available.

Replaces P/N: 520005733
MOQ: 20

SPECIFICATIONS | Ruby

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSD02R-H0100.004 inch0.10 mmNew 4-Axis
BSD02R-H0130.005 inch0.13 mmNew 4-Axis
BSD02R-H0150.006 inch0.15 mmNew 4-Axis
BSD02R-H0180.007 inch0.18 mmNew 4-Axis
BSD02R-H0200.008 inch0.20 mmNew 4-Axis
BSD02R-H0230.009 inch0.23 mmNew 4-Axis
BSD02R-H0250.010 inch0.25 mmNew 4-Axis
BSD02R-H0280.011 inch0.28 mmNew 4-Axis
BSD02R-H0305200057330.012 inch0.30 mmNew 4-Axis
BSD02R-H0335200057320.013 inch0.33 mmNew 4-Axis
BSD02R-H0350.014 inch0.36 mmNew 4-Axis
BSD02R-H0380.015 inch0.38 mmNew 4-Axis
BSD02R-H0410.016 inch0.41 mmNew 4-Axis
BSD02R-H0460.018 inch0.46 mmNew 4-Axis
BSD02R-H0500.020 inch0.50 mmNew 4-Axis
BSD02R-H0700.028 inch0.70 mmNew 4-Axis

SPECIFICATIONS | Sapphire

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSD02S-0100.004 inch0.10 mmNew 4-Axis
BSD02S-0130.005 inch0.13 mmNew 4-Axis
BSD02S-0150.006 inch0.15 mmNew 4-Axis
BSD02S-0180.007 inch0.18 mmNew 4-Axis
BSD02S-0200.008 inch0.20 mmNew 4-Axis
BSD02S-0230.009 inch0.23 mmNew 4-Axis
BSD02S-0250.010 inch0.25 mmNew 4-Axis
BSD02S-0280.011 inch0.28 mmNew 4-Axis
BSD02S-0305200057330.012 inch0.30 mmNew 4-Axis
BSD02S-0335200057320.013 inch0.33 mmNew 4-Axis
BSD02S-0350.014 inch0.36 mmNew 4-Axis
BSD02S-0380.015 inch0.38 mmNew 4-Axis
BSD02S-0410.016 inch0.41 mmNew 4-Axis
BSD02S-0460.018 inch0.46 mmNew 4-Axis
BSD02S-0500.020 inch0.50 mmNew 4-Axis
BSD02S-0700.028 inch0.70 mmNew 4-Axis

SPECIFICATIONS | Diamond

PRODUCT CODEOEM PART NUMBERINNER DIAMETER (inch)INNER DIAMETER (mm)MODEL NAME
BSD02D-0100.004 inch0.10 mmNew 4-Axis
BSD02D-0130.005 inch0.13 mmNew 4-Axis
BSD02D-0150.006 inch0.15 mmNew 4-Axis
BSD02D-0180.007 inch0.18 mmNew 4-Axis
BSD02D-0200.008 inch0.20 mmNew 4-Axis
BSD02D-0230.009 inch0.23 mmNew 4-Axis
BSD02D-0250.010 inch0.25 mmNew 4-Axis
BSD02D-0280.011 inch0.28 mmNew 4-Axis
BSD02D-0305200057330.012 inch0.30 mmNew 4-Axis
BSD02D-0335200057320.013 inch0.33 mmNew 4-Axis
BSD02D-0350.014 inch0.36 mmNew 4-Axis
BSD02D-0380.015 inch0.38 mmNew 4-Axis
BSD02D-0410.016 inch0.41 mmNew 4-Axis
BSD02D-0460.018 inch0.46 mmNew 4-Axis
BSD02D-0500.020 inch0.50 mmNew 4-Axis
BSD02D-0700.028 inch0.70 mmNew 4-Axis
